The Digital Inverted Microscope is equipped with advanced video and image processing and is best for precise laboratory cell analysis and live-cell imaging and recording.
The Digital Inverted Microscope comes with a total magnification between 100X and 400X. It is connected with a display screen or microscope camera to view the image of the specimen under observation. Also, it has a double-layer mechanical stage (with horizontal and vertical adjustable knobs) and three-sized petri dish trays, allowing you to observe different samples. With an inbuilt 2.0 USB interface, the microscope can transfer data at high speed.
ConductScience offers the Digital Inverted Microscope
ConductScience’s Digital Microscope professional digital microscope with a precise operation such as thousand brain positioning or surgical experiment can deliver real-time experimental pictures, high magnification, clear image, economical and reliable, especially for teaching experiments.
Our 77001D Digital Microscope released the eyes of the experimenter, greatly alleviating eye and cervical discomfort caused by long- term observation with a traditional microscope.
The focusing distance of the digital microscope is 180mm, which provides more space for the surgeon’s surgical operation. At the same time, it can also perform vertical or oblique angle imaging according to the experimental conditions to find a better viewing angle.
The LCD Display Screen Digital Video Microscope is essentially a Trinocular microscope with an LCD Display Screen and camera integrated. The LCD Display Screen allows live display and easy analysis of specimens and allows the experimenter to view the specimen without looking into the eyepieces, which can reduce eye fatigue.
The specimen can be viewed under 4 objective lenses with a total magnification of 40X-1600X. Coarse and fine focusing adjustment knobs, a quadruple nosepiece, a double layer mechanical stage, an ABBE condenser, and blue, green, and yellow filters are present. A built-in charging system and LED-Light source with adjustable iris diaphragm are also present. The LCD screen produces high-definition images and videos of 1920 × 1080 at 30 fps. It allows picture previews and photos and videos to be instantly saved with dynamic contrast on an SD card.
ConductScience offers the LCD Display Screen Digital Video Microscope.
The Series Polarizing Microscope with Halogen Lamp uses reflected and transmitted light to observe birefringent materials such as rocks and polymers. The halogen lamp is used as a light source, and a pair of polarizing filters produce polarized light.
The microscope is equipped with an eyepiece, eyepiece tube, blue and frosted filters, polarizer, and collector. It supports both binocular and trinocular heads that can be inclined at 30°. It comes with 4 achromatic objective lenses with different magnifications. In addition, it has a quadruple nosepiece sliding polarizing analyzer, 120 mm rotatable, and double layer mechanical stage with 75mm×35mm moving range which helps not only in moving the stage in a vertical direction but also along the horizontal axes. The coaxial coarse and fine focus system includes a minimum division of fine focusing up to 2 microns. An Abbe condenser is used to focus the light onto the specimen. Furthermore, a 6V 20W halogen lamp and a polarizer are used to illuminate the sample.
ConductScience offers the Polarizing Microscope with Halogen Lamp.
The Trinocular Biological Microscope with Digital Camera is primarily used to study biological specimens such as cells and microorganisms and their vital processes. It is essentially an optical microscope integrated with a digital camera. The camera can photograph the specimens under observation, which can be saved as digital files for further analysis.
The Trinocular Biological Microscope with Digital Camera is an optical microscope equipped with a trinocular head and a digital camera. The microscope’s head has a 55~75 mm interpupillary distance and an adjustable diopter. It has a plan eyepiece and four achromatic objectives with a total magnification between 40X-1600X. It also includes a quadruple nosepiece, 160 mm mechanical tube, ABBE condenser with iris diaphragm, and 140×155mm double layer mechanical stage with a vernier scale of 0.1 mm to measure small lengths. The focusing system includes a fine and coarse coaxial focusing system with a focusing range of 30 mm and a minimum division of fine focusing of 0.002 mm. Blue, Yellow, and Green filters are included with the microscope. A major benefit is that it is equipped with an adjustable brightness built-in LED source with a charging system that allows it to be used for 50 hours without electricity.
ConductScience offers the Trinocular Biological Microscope with Digital Camera.
The Trinocular Phase Contrast Digital Inverted Microscope allows the study of unstained cells in medical and biological research.
The Trinocular Phase Contrast Digital Inverted Microscope is utilized in research laboratories, clinics, hospitals, and educational institutions. The inverted design of the microscope allows the observation of live biological tissue cultures in dishes and other specimens directly from various glass container bottoms.
It is available and connected to a display screen or microscope camera. The digital camera produces high-quality images and captures still images and videos that you can live stream on your PC/laptop. It also comes with in-built software for Mac, Linux, and Windows to provide a multi-platform imaging solution.
ConductScience offers the Trinocular Phase Contrast Digital Inverted Microscope.

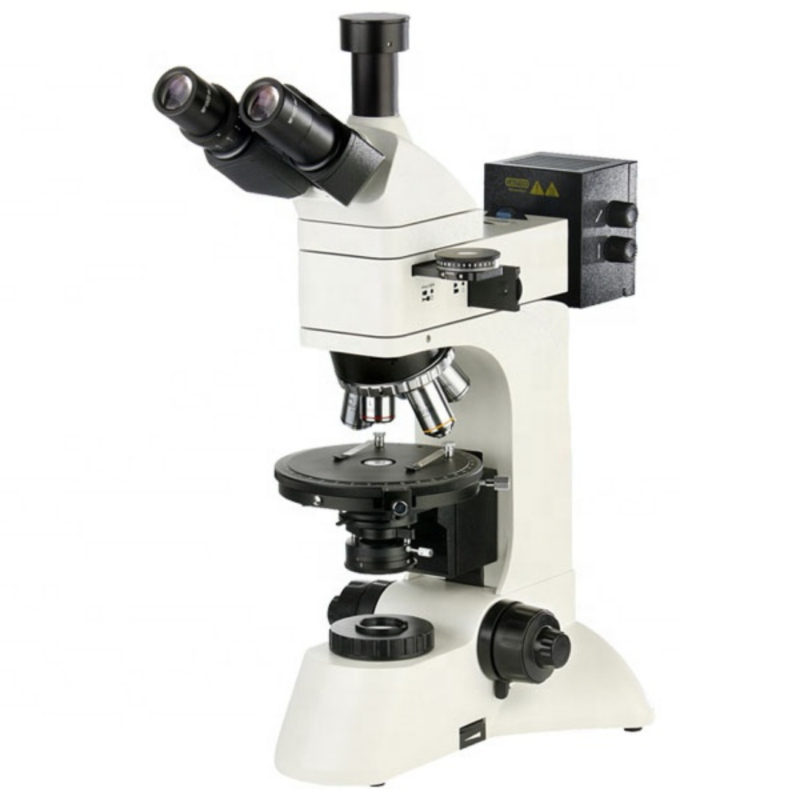

The Trinocular Polarized Microscope uses polarized light to study anisotropic specimens like liquid crystals and minerals. It includes a polarizer positioned in the light path before the specimen and an analyzer placed in the light path between the observation tubes or camera port and objective rear aperture.
The microscope is equipped with two polarizing filters known as polarizer and analyzer. It includes a dividing eyepiece and a trinocular eyepiece tube that is inclined at 30° and can capture the images in 100% light flux. Long infinity objectives are present that make the field of view clear and wide. It also includes 50X ~ 600X magnification lenses, a reflected illumination system, a quadruple nosepiece, a focusing system, a puller-type Bertrand lens as an intermediate attachment, and λ, λ/4, and quarts wedge compensator.
In a polarized microscope, a polarizer transforms white light into plane-polarized light before reaching the sample.
ConductScience offers the Trinocular Polarized Microscope.
