Light Arc for Tail Injections
Semicircular illumination system with adjustable RGB LEDs for enhanced tail vein visualization in dark-coated rodents during intravenous injection procedures.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Light Arc for Tail Injections fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- Model fit
- Mouse, Rat
- SKU family
- CS-LATIM-03
- Sizing
- 31.0 x 31.0 x 18.0 cm
- Ordering
- Online checkout and quote request available
- Category
- Microinjection & Infusion
- Build notes
- High-Quality Acrylic
The Light Arc for Tail Injections is a specialized illumination system designed to enhance visualization of caudal veins in dark-coated rodent strains during intravenous injection procedures. The device addresses the challenge of identifying tail veins in black or dark brown mice and rats where standard lighting provides insufficient contrast for accurate needle placement.

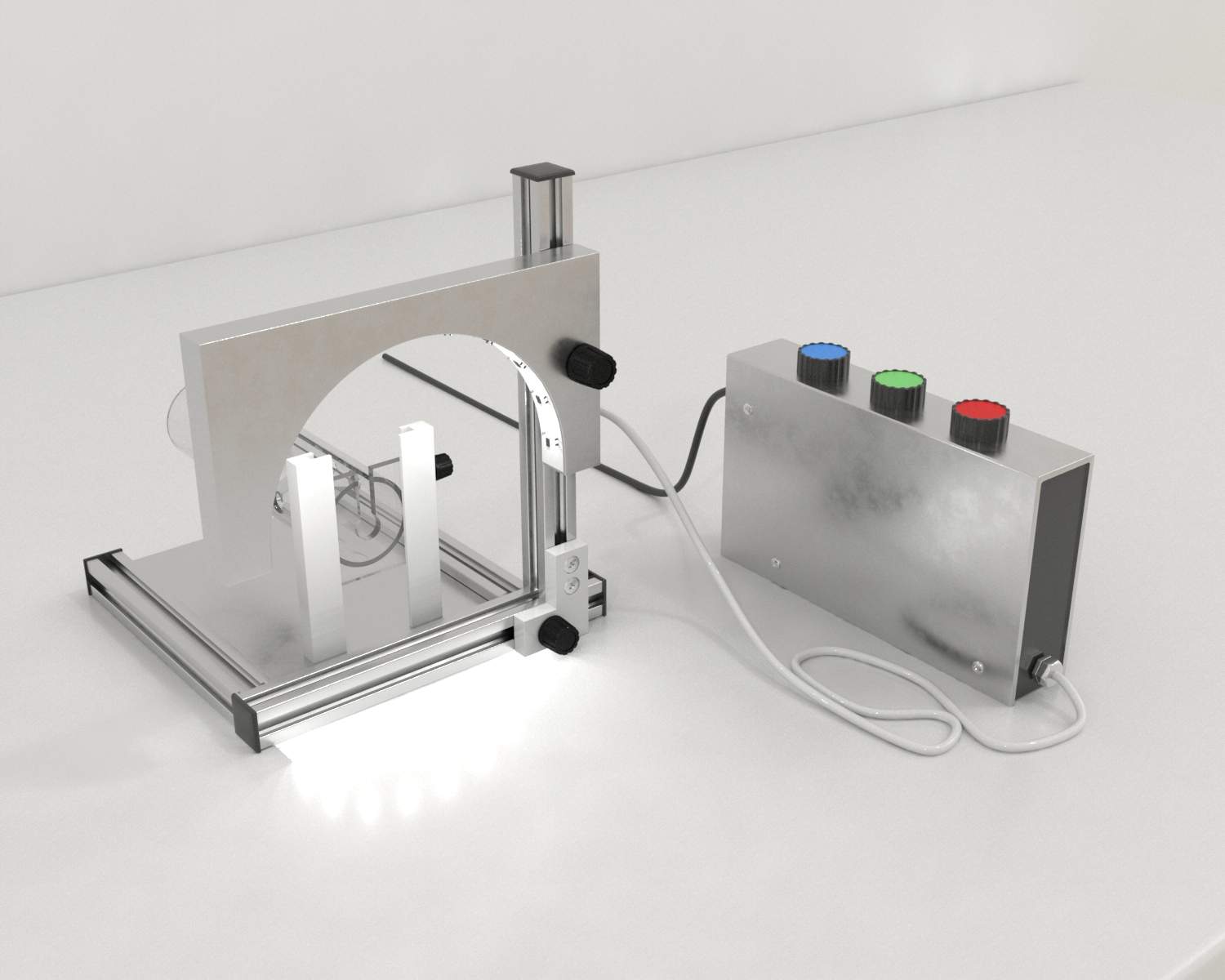

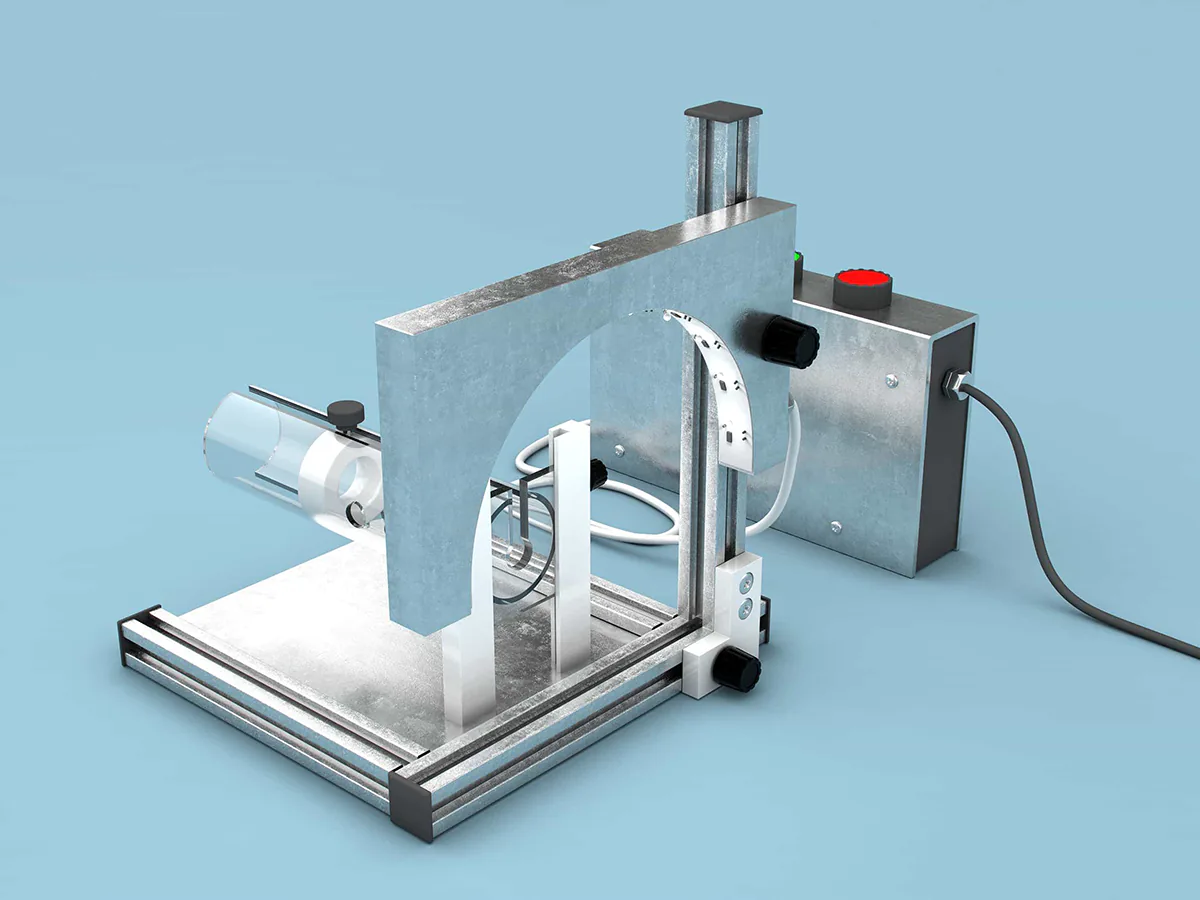

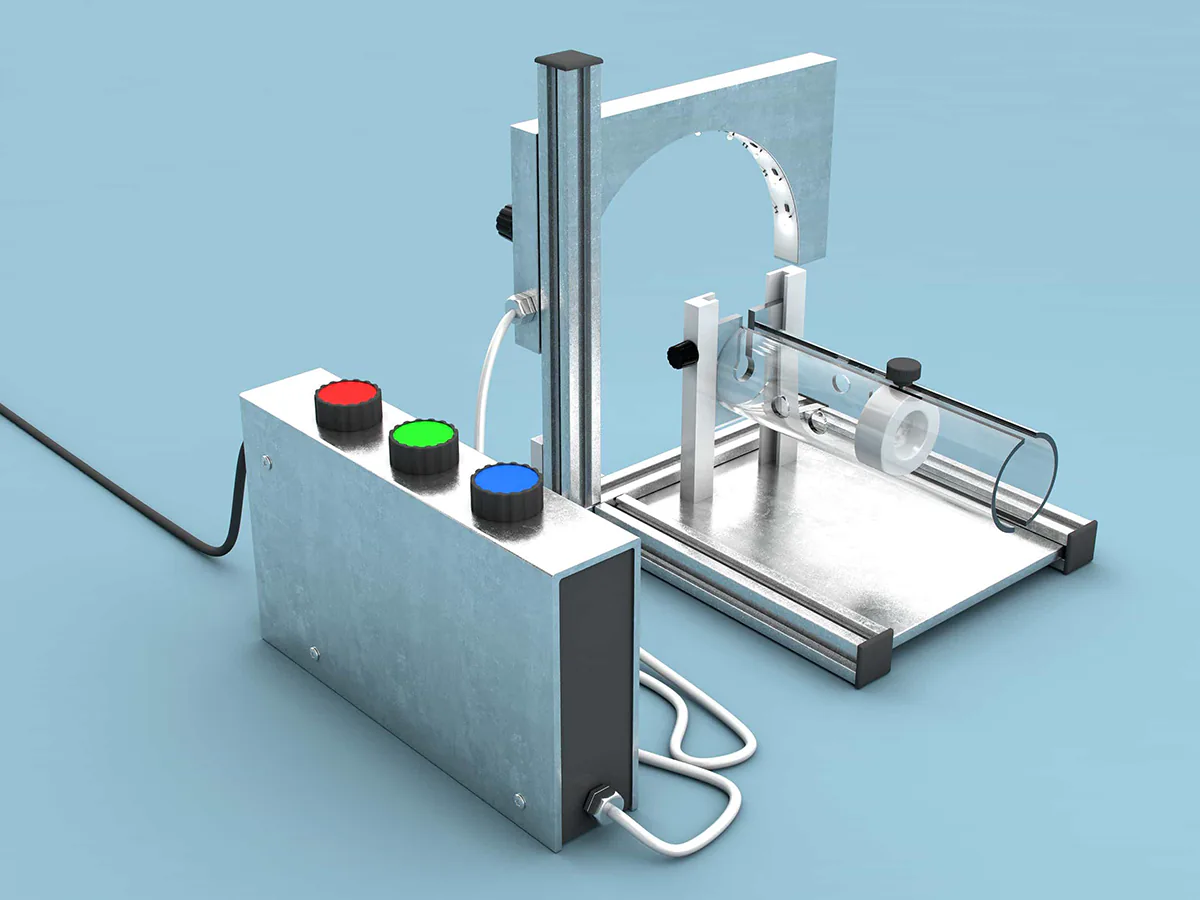

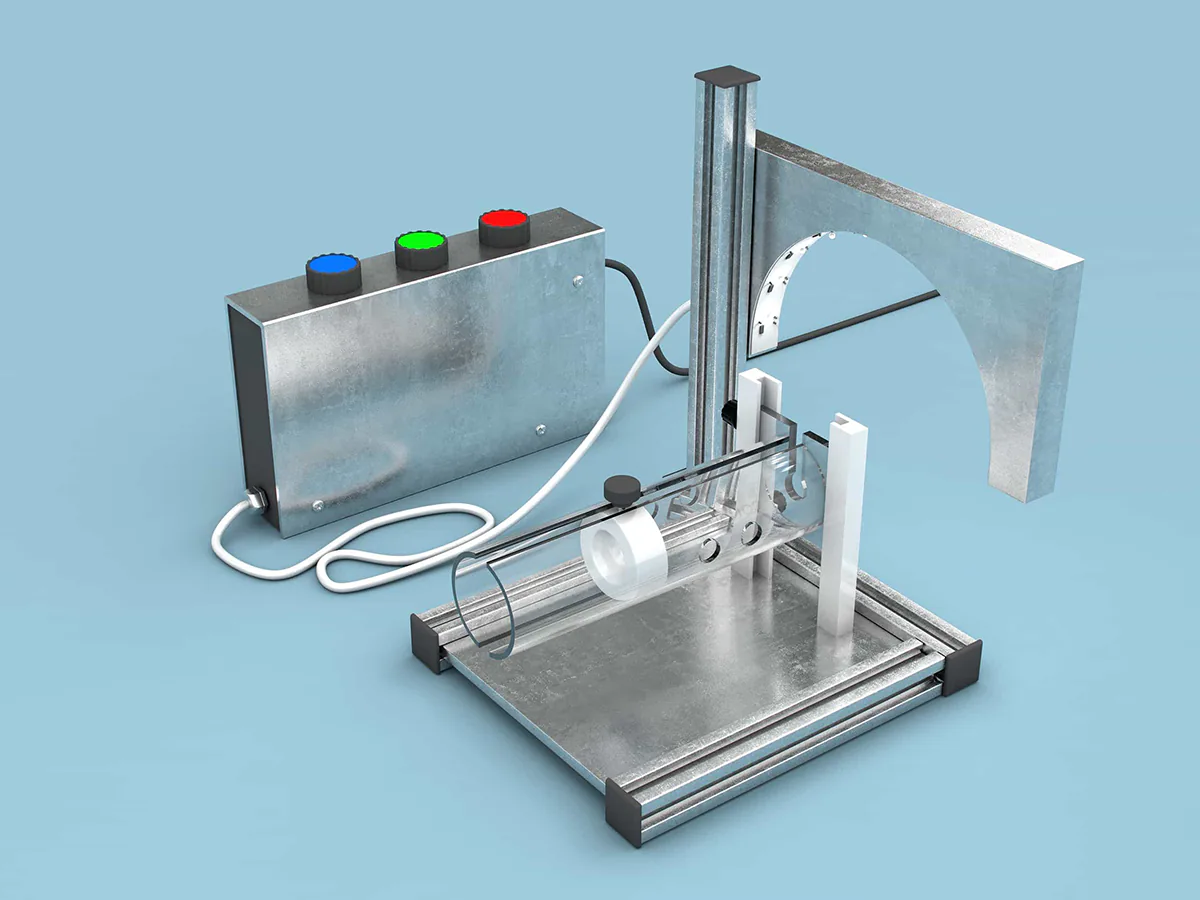

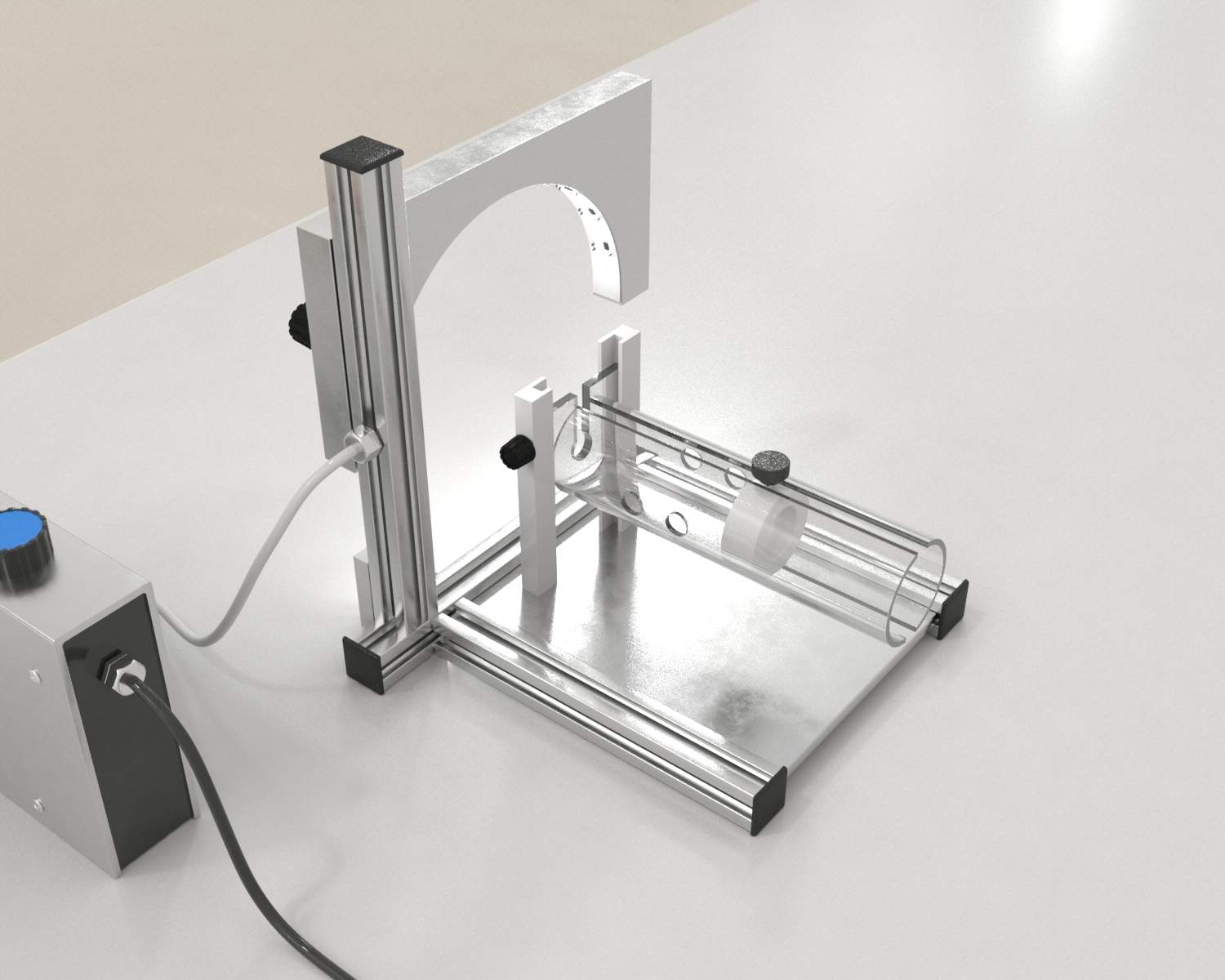

The system features a 180° semicircular light arc equipped with 10 RGB LEDs positioned at 2cm intervals to provide uniform illumination around the subject's tail. Individual red, green, and blue intensity controls allow researchers to optimize color contrast for vein visualization. A Broome-style restraint system positions the animal at the center of the light arc for consistent illumination during injection procedures. The apparatus includes detailed protocols for subject warming, vein dilation, and injection technique to maximize success rates in tail vein catheterization.
How It Works
The Light Arc system operates on the principle of transillumination to enhance contrast between blood vessels and surrounding tissue in pigmented subjects. The semicircular array of RGB LEDs creates uniform illumination across a 180° arc, eliminating shadows and providing consistent light penetration through the tail tissue. The adjustable color spectrum allows optimization of the wavelength composition to maximize absorption differences between oxygenated blood and surrounding tissue.
Vein visualization is enhanced through selective wavelength filtering using individual RGB intensity controls. Red light penetrates deeper into tissue but provides less contrast, while green and blue wavelengths offer superior contrast at the expense of penetration depth. The combination of all three primary colors allows fine-tuning of the illumination spectrum to match the optical properties of different rodent coat colors and tail pigmentation patterns. The warming protocol induces vasodilation through localized hyperthermia, increasing vessel diameter and blood flow to further enhance visibility under the optimized illumination.
Features & Benefits
led_count
- 10 RGB LEDs
led_spacing
- approximately one every 2cm
light_arc_angle
- 180°
water_bath_temperature
- 42°C
warming_duration
- 40 to 45 seconds
needle_insertion_depth
- 6-7mm maximum
needle_angle
- parallel to vein, almost 0°
color_adjustment
- red, green, and blue knobs
restrainer_type
- Broome-style handler
restrainer_angle
- 90° to stand
design_features
- ['Transparent', 'Durable', 'Easy to Clean']
Size
- Mouse
- Rat
Automation Level
- manual
Material
- High-Quality Acrylic
Species
- Mouse
- Rat
Research Domain
- Behavioral Pharmacology
- Cancer Research
- Cardiovascular Research
- Metabolic Research
- Neuroscience
- Toxicology
Weight
- 8.0 kg
Dimensions
- L: 31.0 mm
- W: 31.0 mm
- H: 18.0 mm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Illumination Coverage | 180° semicircular arc with 10 RGB LEDs | Single-point or linear light sources with limited angular coverage | Eliminates shadows and provides consistent illumination from multiple angles for superior vein identification |
| Color Optimization | Individual RGB intensity controls for spectral tuning | Fixed white light or limited color adjustment options | Allows precise wavelength optimization for different coat colors and pigmentation patterns |
| Animal Positioning | Integrated Broome-style restraint at fixed 90° angle | Separate restraint systems with variable positioning | Ensures consistent illumination geometry and reduces setup time between procedures |
| Construction Material | High-quality acrylic with transparent, easy-to-clean design | Metal or opaque plastic housings | Provides unobstructed viewing while maintaining chemical resistance and optical clarity |
| LED Spacing | Uniform 2cm intervals across 180° arc | Varies by model with potential illumination gaps | Ensures consistent light distribution without hot spots or shadows that could obscure vessel identification |
The Light Arc combines specialized RGB illumination, integrated restraint positioning, and transparent construction to address the specific challenge of tail vein identification in dark-coated rodents. The semicircular design and adjustable color spectrum provide advantages over conventional lighting approaches for pigmented animal procedures.
| Model | SKU | Listed price | Status | Dimensions |
|---|---|---|---|---|
| Rat | CS-LATIR | $910.00 | Available | 35.56 x 35.56 x 38.1 cm |
| Mouse | CS-LATIM-01 | $910.00 | Available | 35.56 x 35.56 x 38.1 cm |
Practical Tips
Calibrate RGB settings using the darkest animals in your colony as these represent the most challenging visualization conditions.
Why: Settings optimized for the most difficult cases will work effectively across all animals in the study.
Clean acrylic surfaces with 70% isopropanol between animals and inspect for scratches that could scatter light and reduce contrast.
Why: Optical clarity is essential for maintaining consistent vein visualization quality across procedures.
Warm injection solutions to body temperature before administration to prevent vasoconstriction from cold fluid delivery.
Why: Cold injections can cause immediate vessel constriction, negating the benefits of the warming protocol.
Use the warming bath with a clean beaker insert to prevent contamination from animal waste during tail immersion.
Why: Contamination control prevents cross-contamination between subjects and maintains sterile injection conditions.
If veins remain difficult to visualize, try reducing red LED intensity while maintaining blue and green levels for enhanced contrast.
Why: Red light penetrates deeper but provides less contrast, while shorter wavelengths offer better vessel-to-tissue differentiation.
Monitor animals for signs of overheating during warming procedures and limit bath exposure to the recommended 40-45 seconds.
Why: Excessive warming can cause hyperthermia and stress responses that interfere with study outcomes.
Document successful injection confirmation through blood return in the syringe before drug administration.
Why: Verification of proper vein cannulation ensures accurate dosing and prevents perivascular drug deposition.
Setup Guide
What’s in the Box
- Light Arc illumination unit
- Broome-style animal restraint system
- Power adapter and cable
- User manual with injection protocols
- RGB calibration guide (typical)
Warranty
ConductScience provides a standard one-year manufacturer warranty covering defects in materials and workmanship, with technical support for protocol optimization and troubleshooting.
Compliance
What rodent strains benefit most from the Light Arc system?
The system is specifically designed for dark-coated strains including C57BL/6, B6D2F1, and other black or dark brown mice and rats where standard lighting provides insufficient vein contrast for reliable tail vein identification.
How do I optimize the RGB settings for different animals?
Start with balanced RGB levels and gradually adjust individual color intensities while observing vein contrast. Generally, reduce red intensity and increase blue/green for darker coats, but optimal settings vary by individual animal pigmentation.
What needle specifications work best with this system?
Use 25-27 gauge needles with maximum insertion depth of 6-7mm at nearly parallel angles to the vein. The enhanced visualization allows for more precise needle placement and reduces multiple insertion attempts.
Can this system be used for repeated injections in the same animal?
Yes, the improved visualization reduces vessel trauma and allows identification of alternative injection sites along the tail length, supporting serial injection protocols with appropriate recovery intervals.
How long should animals be warmed before injection?
The standard protocol specifies 40-45 seconds in a 42°C water bath for optimal vasodilation. Longer warming times may cause stress, while shorter periods provide insufficient vein dilation.
What maintenance is required for the LED array?
Clean the acrylic surfaces with appropriate disinfectants between uses and periodically verify LED function across all color channels. The solid-state LEDs typically provide years of maintenance-free operation.
How does this compare to alternative illumination methods?
Unlike single-point light sources or transillumination boxes, the semicircular arc eliminates shadows and provides consistent illumination from multiple angles, significantly improving vein identification success rates in pigmented animals.
