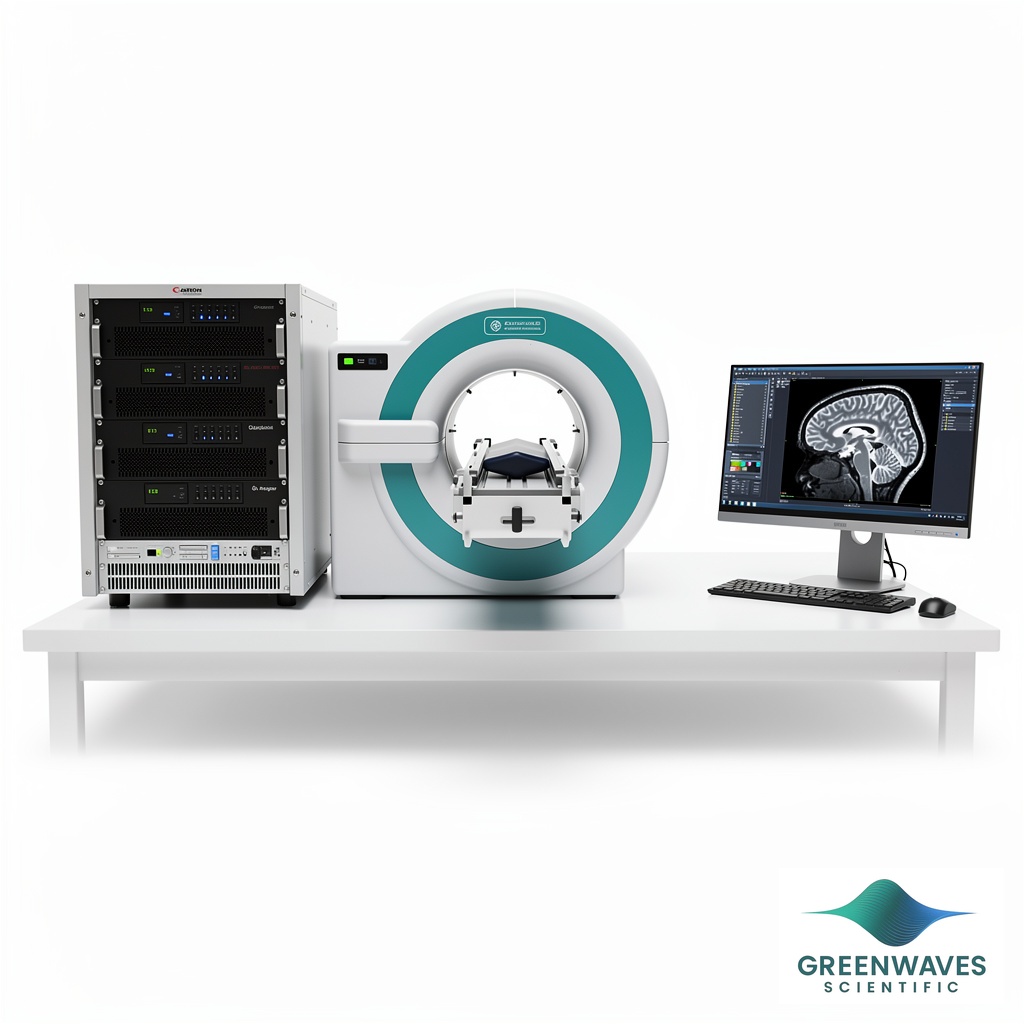

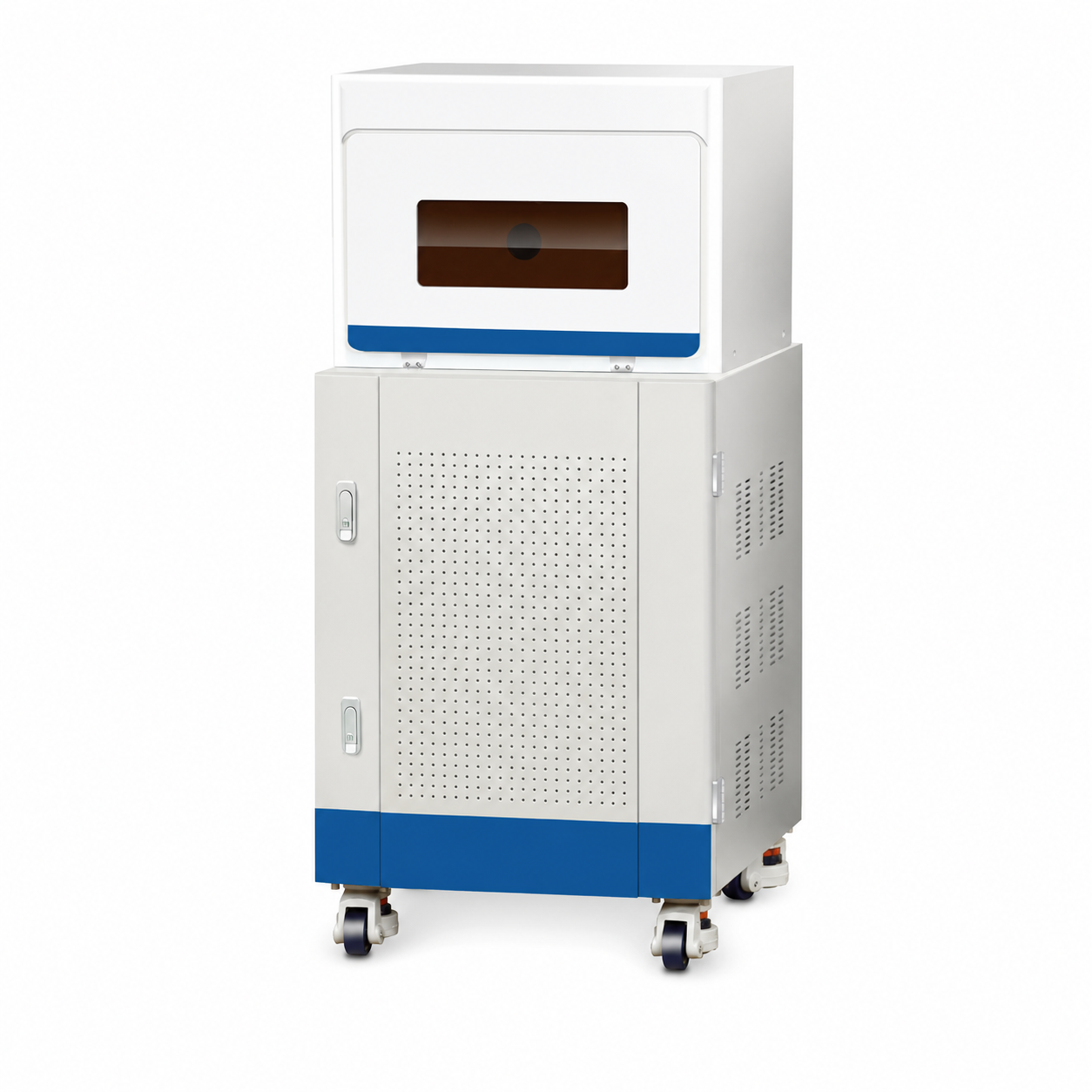

Small Animal MRI System
High-resolution permanent magnet MRI system for preclinical research, available in 1.0T (40H) and 0.5T (60H) configurations with multiple probe options for mice ranging from 1-150g.
Louise Corscadden, PhD
Director of Science · ConductScience
Ask Louise about Small Animal MRI System fit, setup, configuration, or quote prep.
Already working with us? Sign in to connect this with My Scientist.
Key Specifications
Full details →- magnet_field_strength_40H
- 1.0 ± 0.05T
- magnet_field_strength_60H
- 0.5±0.05T
- magnet_uniformity_40H
- 20 ppm (40mm×40mm×40 mm)
- magnet_uniformity_60H
- ≤20ppm (60mm×60mm×60mm)
- Magnetic Field Stability
- ≤300Hz/Hour
- Rf Pulse Frequency
- 1-30MHz
Small Animal MRI System
NM21-060H-I
Small Animal MRI System
Niumag Corporation
www.nmramalyzer.com
Sales & support hotline:+86-400-060-3233; Email: info@niumag.com
Introduction
NM21-060H-I is designed for in-vivo MRI observation of animals. It is a permanent magnet system that provides high contrast images and has an intuitive user interface. As a powerful and non-destructive MRI instrument, this system is widely used in life sciences for in-vivo study of tissue structures and contrast agent dispersion. Niumag small animal MRI system is robust with low operating and maintenance costs.
Applications
- Contrast agent MRI of subcutaneous tumor
- Multilayer MRI of 150g rat's head MRI
Sales & support hotline:+86-400-060-3233; Email: info@niumag.com
Specifications
1. Magnet: permanent,0.5±0.05T;
2. Magnetic field uniformity: ≤20ppm(60mm×60mm×60mm);
3. Magnetic field stability: ≤300Hz/Hour;
4. Magnet temperature control: dual system of nonlinear precise temperature control, temperature tunable from 250C to 350C;
- 5. RF field: pulse frequency: 1-30MHz; frequency control accuracy: 0.1Hz; 6. RF power amplifier: > 300W;
- 7. Maximum bandwidth: 2000KHz;
- 8. MRI gradient: > 5 Gauss/cm for x, y, z;
- 9. Standard Probe Sizes: 60 mm and 40 mm;
- Optional: 25 mm
- 10. Effective detection area size :
- (1) 60 mm Probe: up to Ø 62mm (45 – 150 g mice);
- (2) 40 mm Probe: up to Ø 42mm (20 – 45 g mice);
- (3) 25 mm Probe: up to Ø 32mm (1 – 20 g mice);
- 11. Image quality: Graphic SNR >= 20db; Image distortion ≤ 5%; Image uniformity >=70%
- 12. Maximum CPMG is 18,000; minimum echo time listed below :
- (1) 60 mm Probe: ≤ 250 us;
- (2) 40 mm Probe: ≤ 160 us;
- (3) 25 mm Probe: ≤ 160 us;
- 13. Based on PCI bus industrial control computer platform, 8-core CPU, 8G DDR memory, 1T hard disk.
- 14. Operating Conditions
- - Power supply: 220V, 50Hz
- - Temperature: 22-28°C
- - Humidity: 30-70%
- 15. Dimensions (L, W, H):
Magnet box: 760 mm× 530 mm× 514 mm;
- Control cabinet: 560 mm× 660 mm× 970 mm;
16. Total Weight:800 kg (Magnet 700 kg, control cabinet 100 kg)
- Sales & support hotline:+86-400-060-3233; Email: info@niumag.com
- Configurations
- Standard Configuration
- 1.Hardware
- Component
- Quantity
(1) Magnet unit
Magnet unit box
- 1
Magnet
- 1
- Gradient coil
- 1
- (2) Control cabinet
- RF unit
- RF unit box
- 1
- Preamplifier
- 1
- RF power amplifier
- 1
- Spectrometer unit
- (including ICC)
- Industrial control computer
- 1
- Time control (CLK)
- 1
- Pulse sequence generator (PSG)
- 1
- Direct digital frequency Synthesis (DDS)
- 1
- Digital-to-analog converter (DAC)
- 1
- Analog-to-digital converter (ADC)
- 1
- Power supply unit
Magnet temperature control
- 1
- Heating system
- 1
- Power supply system
- 1
- Imaging gradient unit
- Gradient unit box
- 1
- gradient power amplifier
- 1
- (3) Probe coil
- 70 mm and 40 mm probe coils
- 1
- 2.Software
- Component
- Quantity
- (1) NMR General Software
Magnetic Resonance Imaging System
- 1
- (2) NMR General Software
- NMR Analyzing System
- 1
- 3.Accessory
- Component
- Quantity
- (1) Accessory
- Niumag software USB
- 1
- Debugging tools
- Special tools
- 1
- 50Ω terminal
- 1
- BNC adapter assembly
- 1
- Testing line
- 2
- Fuses
- 26
- (2) Computer peripherals
- LCD display
- 1
- Mouse, keyboard
- 1
- Sales & support hotline:+86-400-060-3233; Email: info@niumag.com
How It Works
The Small Animal MRI System operates on the principle of nuclear magnetic resonance, utilizing permanent magnets to generate strong, stable magnetic fields that align hydrogen nuclei in biological tissues. When radiofrequency pulses are applied at specific frequencies (1-30MHz range), these aligned nuclei absorb energy and subsequently emit detectable signals as they return to equilibrium states.
Gradient coils generating >7.5 Gauss/cm (Model 40H) or >5 Gauss/cm (Model 60H) in x, y, and z directions provide spatial encoding by creating controlled magnetic field variations across the imaging volume. The system's dual nonlinear temperature control maintains magnet stability by regulating temperature within ±0.1°C, ensuring consistent field strength and homogeneity over extended imaging sessions.
Signal detection occurs through specialized RF coils matched to different animal sizes, with the system's >300W power amplifier and 2000KHz bandwidth enabling rapid pulse sequences and high-resolution image acquisition. The integrated 8-core processing system handles real-time data collection with maximum CPMG sequences up to 18,000 and minimum echo times of 200μs, supporting diverse imaging protocols from anatomical to functional studies.
Features & Benefits
Research identifier
This ID comes from the Ontology for Biomedical Investigations (OBI). Use it in data records and methods sections.
- Device type
- Small animal imaging device
OBI:0001077
magnet_field_strength_40H
- 1.0 ± 0.05T
magnet_field_strength_60H
- 0.5±0.05T
magnet_uniformity_40H
- 20 ppm (40mm×40mm×40 mm)
magnet_uniformity_60H
- ≤20ppm (60mm×60mm×60mm)
Magnetic Field Stability
- ≤300Hz/Hour
Rf Pulse Frequency
- 1-30MHz
Frequency Control Accuracy
- 0.1Hz
Rf Power Amplifier
- > 300W
Maximum Bandwidth
- 2000KHz
mri_gradient_40H
- > 7.5 Gauss/cm for x, y, z
mri_gradient_60H
- > 5 Gauss/cm for x, y, z
probe_sizes_40H
- 40 mm
probe_sizes_60H
- 60 mm, 40 mm or 25 mm (optional)
effective_detection_size_40H
- up to Ø 40 mm
effective_detection_size_60H_60mm
- up to Ø 62mm (45 – 150 g mice)
effective_detection_size_60H_40mm
- up to Ø 42mm (20 – 45 g mice)
effective_detection_size_60H_25mm
- up to Ø 32mm (1 – 20 g mice)
Image Quality
- Graphic SNR >= 20db; Image distortion ≤ 5% - Image uniformity >=70%
Maximum Data Record Length
- Maximum CPMG is 18,000
Minimum Echo Time
- 200 US
Computer Specs
- PCI bus industrial control computer platform, 8-core CPU, 8G DDR memory, 1T hard disk
Power Frequency
- 50Hz
Humidity
- 30-70%
Automation Level
- semi-automated
Power/Voltage
- 220V
Temperature Range
- 22-28°C (operating), 25-35°C (magnet temperature control)
Accuracy
- ±0.1°C (temperature accuracy)
Species
- Mouse
Brand
- Greenwaves Scientific
Research Domain
- Cancer Research
- Cardiovascular
- Developmental Biology
- Metabolic Research
- Neuroscience
- Pharmaceutical QC
Shipping weight
- 800.0 lb
Shipping box
- L: 100.0 cm
- W: 80.0 cm
- H: 100.0 cm
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Magnet Technology | Permanent magnet with dual temperature control (±0.1°C accuracy) | Many systems use superconducting magnets requiring cryogenic maintenance | Eliminates ongoing cryogen costs and quench risks while maintaining stable field conditions for consistent imaging. |
| Probe Flexibility | Multiple probe options (25mm, 40mm, 60mm) for 1-150g subject range | Fixed bore systems typically accommodate narrower weight ranges | Enables studies across developmental stages and different mouse strains without compromising image quality. |
| Field Stability | ≤300Hz/hour drift with 20ppm uniformity | Entry-level systems often show higher drift rates | Supports extended imaging protocols and longitudinal studies requiring consistent field conditions. |
| Gradient Strength | >7.5 Gauss/cm (40H) or >5 Gauss/cm (60H) in all three axes | Lower-end systems may offer reduced gradient performance | Provides superior spatial encoding for high-resolution anatomical imaging and accurate volumetric measurements. |
| RF Power and Bandwidth | >300W amplifier with 2000KHz bandwidth and 0.1Hz frequency control | Basic systems often have limited power and frequency precision | Enables advanced pulse sequences and rapid imaging protocols for comprehensive preclinical studies. |
This system combines permanent magnet reliability with advanced RF capabilities and flexible probe configurations, providing field strengths suitable for most preclinical applications while eliminating cryogenic maintenance requirements. The dual temperature control and high gradient strength specifications support consistent, high-quality imaging across diverse research protocols.
| Model | SKU | Listed price | Status | Shipping box |
|---|---|---|---|---|
| Model 40H | CS-NM21-060H-I-01 | Quote | Available | 100.0 × 80.0 × 100.0 cm |
| Model 60H | CS-NM21-060H-I-02 | Quote | Available | 100.0 × 80.0 × 100.0 cm |
Practical Tips
Perform daily field stability verification before imaging sessions and recalibrate RF frequency if drift exceeds 0.1Hz tolerance.
Why: Maintaining precise resonance conditions ensures consistent signal acquisition and reproducible quantitative measurements.
Monitor temperature control system performance weekly and clean temperature sensors monthly to maintain ±0.1°C accuracy.
Why: Temperature stability directly affects magnetic field homogeneity and long-term system performance.
Allow 24-48 hour thermal stabilization after any system shutdown and verify gradient linearity before critical studies.
Why: Thermal equilibrium ensures stable magnetic field conditions and optimal image quality for quantitative analyses.
Select probe size based on subject weight ranges (25mm: 1-20g, 40mm: 20-45g, 60mm: 45-150g) for optimal SNR.
Why: Proper probe matching maximizes signal detection efficiency and image quality for each subject size.
Verify SNR ≥20dB, distortion ≤5%, and uniformity ≥70% using standard phantoms before each experimental series.
Why: Regular quality assurance ensures consistent imaging performance and validates quantitative measurement accuracy.
If image artifacts appear, check gradient coil connections and verify RF shield integrity before adjusting acquisition parameters.
Why: Hardware issues often manifest as systematic image artifacts that cannot be resolved through software adjustments alone.
Maintain minimum 1-meter clearance around magnet assembly and screen all personnel and equipment for ferromagnetic materials.
Why: Permanent magnets maintain constant fields that can attract ferromagnetic objects and pose safety risks even when system is powered off.
