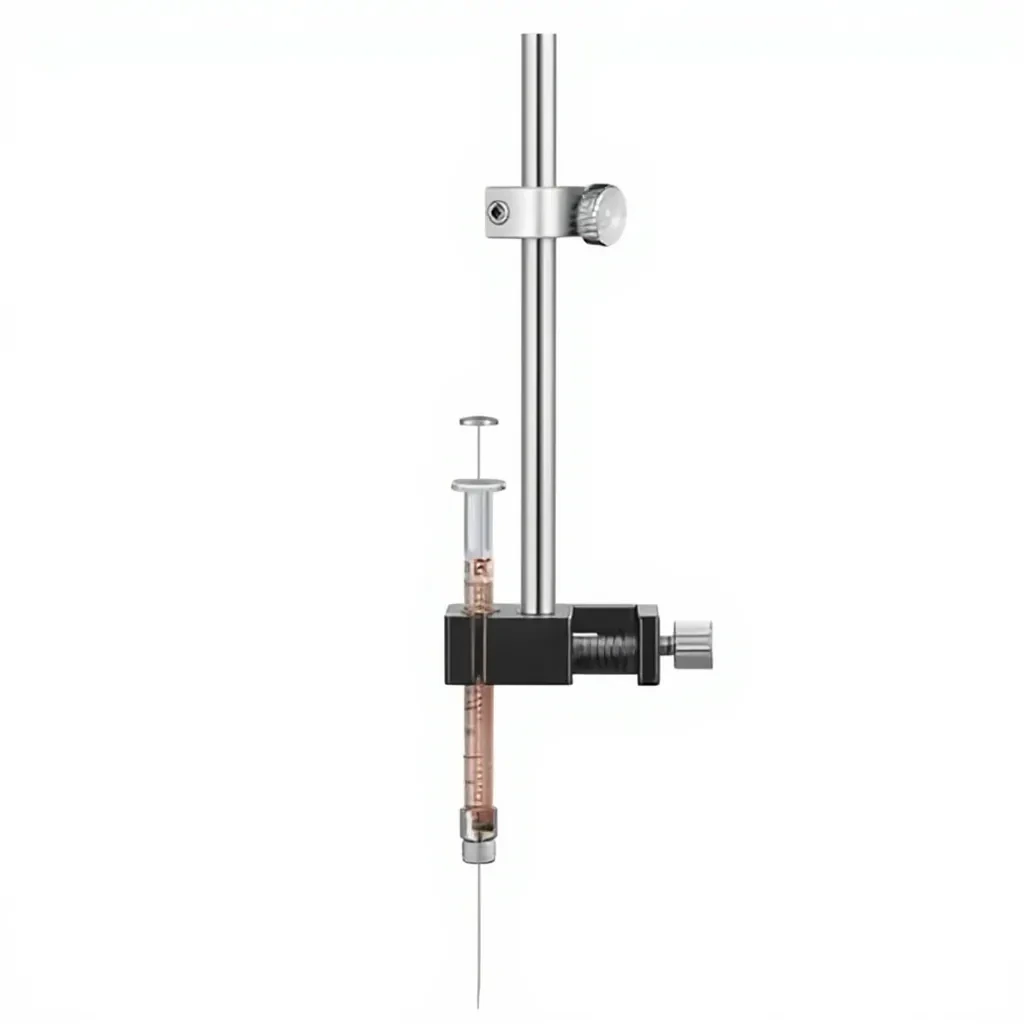

Syringe Holder-F1
Precision syringe mounting accessory for stereotaxic frames, accommodating 6.5-13mm diameter glass or plastic syringes with adjustable height positioning and dual-lock security.
| syringe_barrel_diameter_range | 6.5-13MM |
| connector_type | international standard connector |
| mounting_compatibility | X/Z axis cross-operating arm |
| height_adjustment | adjustable upper and lower heights |
| clamping_mechanism | V-shaped groove |
| locking_system | side lock with double protection |
The Syringe Holder-F1 is a precision mounting accessory designed for stereotaxic surgical procedures requiring controlled syringe positioning. This holder accommodates both glass and plastic syringes with outer barrel diameters ranging from 6.5-13mm, providing secure mounting through a V-shaped groove clamping mechanism with dual-lock protection. The device features an international standard connector for direct integration with X/Z axis cross-operating arms on stereotaxic frames.
Primarily utilized for intracerebral injection procedures, this holder enables researchers to maintain precise syringe positioning during microinjections in experimental animals. The adjustable upper and lower clamping rod heights allow for optimal positioning across different syringe types, while the side-lock mechanism prevents inadvertent loosening during surgical procedures.
How It Works
The Syringe Holder-F1 operates through a mechanical clamping system that secures syringes via direct contact with the outer barrel. The V-shaped groove design distributes clamping force evenly around the syringe circumference, preventing deformation while maintaining secure positioning. This geometry accommodates the range of standard laboratory syringe diameters from 6.5-13mm without requiring different holder sizes.
The dual-protection locking mechanism consists of the primary V-groove clamp and a secondary side lock that prevents loosening during procedures. Height adjustment is achieved through repositioning the upper and lower clamping rods, allowing the holder to accommodate different syringe lengths and optimize positioning relative to the target injection site. The international standard connector ensures compatibility with commercial stereotaxic frame manipulator arms, providing stable mounting throughout surgical procedures.
Features & Benefits
syringe_barrel_diameter_range
- 6.5-13MM
connector_type
- international standard connector
mounting_compatibility
- X/Z axis cross-operating arm
height_adjustment
- adjustable upper and lower heights
clamping_mechanism
- V-shaped groove
locking_system
- side lock with double protection
syringe_compatibility
- glass or plastic syringes
primary_use
- intracerebral injection
Automation Level
- manual
Research Domain
- Addiction Research
- Behavioral Pharmacology
- Learning and Memory
- Motor Function
- Neurodegeneration
- Neuroscience
Species
- Hamster
- Rabbit
- Mouse
- Rat
- Guinea pig
Weight
- 1.1 kg
Dimensions
- L: 30.48 mm
- W: 10.16 mm
- H: 10.16 mm
Comparison Guide
| Feature | This Product | Typical Alternative | Advantage |
|---|---|---|---|
| Barrel Diameter Range | 6.5-13mm compatibility | Fixed-diameter models often accommodate narrower ranges | Single holder supports multiple syringe types, reducing equipment inventory and setup time. |
| Clamping Mechanism | V-shaped groove with dual-lock protection | Basic clamps may use single-point contact or lack secondary locks | Even force distribution prevents barrel deformation while dual protection prevents loosening during procedures. |
| Height Adjustment | Adjustable upper and lower clamping rods | Fixed-height models limit positioning options | Accommodates different syringe lengths and enables optimal injection angle positioning. |
| Connector Type | International standard connector | Proprietary connectors may limit frame compatibility | Direct compatibility with major stereotaxic frame brands without requiring adapters. |
| Material Compatibility | Glass and plastic syringe support | Some holders optimize for either glass or plastic exclusively | Flexibility to use precision glass or cost-effective plastic syringes based on experimental requirements. |
The Syringe Holder-F1 offers broad syringe compatibility with enhanced security features and positioning flexibility. The combination of adjustable geometry, dual-lock protection, and universal connector design supports diverse experimental protocols while maintaining precise positioning throughout surgical procedures.
Practical Tips
Pre-adjust the clamping rod heights before loading the syringe to minimize handling time during sterile procedures.
Why: Reduces contamination risk and surgical duration by streamlining the syringe mounting process.
Apply gradual clamping pressure with glass syringes, checking for secure positioning before engaging the side lock.
Why: Prevents stress fractures in precision glass syringes while ensuring adequate holding force.
Clean the V-groove thoroughly after each use to remove any residual solutions or biological material.
Why: Prevents buildup that could affect clamping uniformity and maintains sterile conditions for subsequent procedures.
Verify holder alignment with the stereotaxic coordinate system before each surgical session.
Why: Ensures injection accuracy and prevents systematic targeting errors throughout the procedure.
If the side lock becomes difficult to engage, inspect for debris in the locking mechanism and clean as needed.
Why: Maintains reliable secondary protection against syringe loosening during critical injection phases.
Test holder security with gentle manipulation before beginning injections to confirm stable mounting.
Why: Verifies system integrity and prevents positioning drift that could compromise injection accuracy.
Lubricate the international standard connector threads periodically to ensure smooth mounting and removal.
Why: Prevents thread galling and maintains proper torque specifications for secure frame attachment.
Setup Guide
What’s in the Box
- Syringe Holder-F1 main unit
- International standard connector
- Adjustment tools (typical)
- User manual (typical)
Warranty
ConductScience provides a one-year manufacturer warranty covering defects in materials and workmanship, with technical support available for setup and operational questions.
Compliance
References
Background reading relevant to this product:
What syringe sizes are compatible with this holder?
The holder accommodates syringes with outer barrel diameters from 6.5-13mm, including standard Hamilton glass syringes from 10μL to 1mL and common plastic syringes.
How does the dual-lock system prevent syringe loosening?
The V-groove provides primary clamping force around the syringe barrel, while the side lock mechanism adds secondary protection against inadvertent loosening during surgical manipulation.
Is this holder compatible with different stereotaxic frame brands?
Yes, the international standard connector threads directly onto X/Z axis cross-operating arms from major stereotaxic frame manufacturers.
Can the holder accommodate different syringe lengths?
The upper and lower clamping rod heights are adjustable, allowing optimization for different syringe lengths and injection angles.
What precautions should be taken with glass syringes?
Apply only sufficient clamping force to secure the syringe without excessive pressure that could crack or deform glass barrels, particularly with thin-walled precision syringes.
How is the holder positioned relative to the injection site?
Position the holder using the stereotaxic frame's X/Z axis controls after mounting, then adjust the internal rod heights to optimize syringe angle and depth positioning.
What maintenance is required for the clamping mechanism?
Periodically clean the V-groove of residual solutions and inspect the locking mechanism for smooth operation, lubricating threads if needed to maintain proper function.
